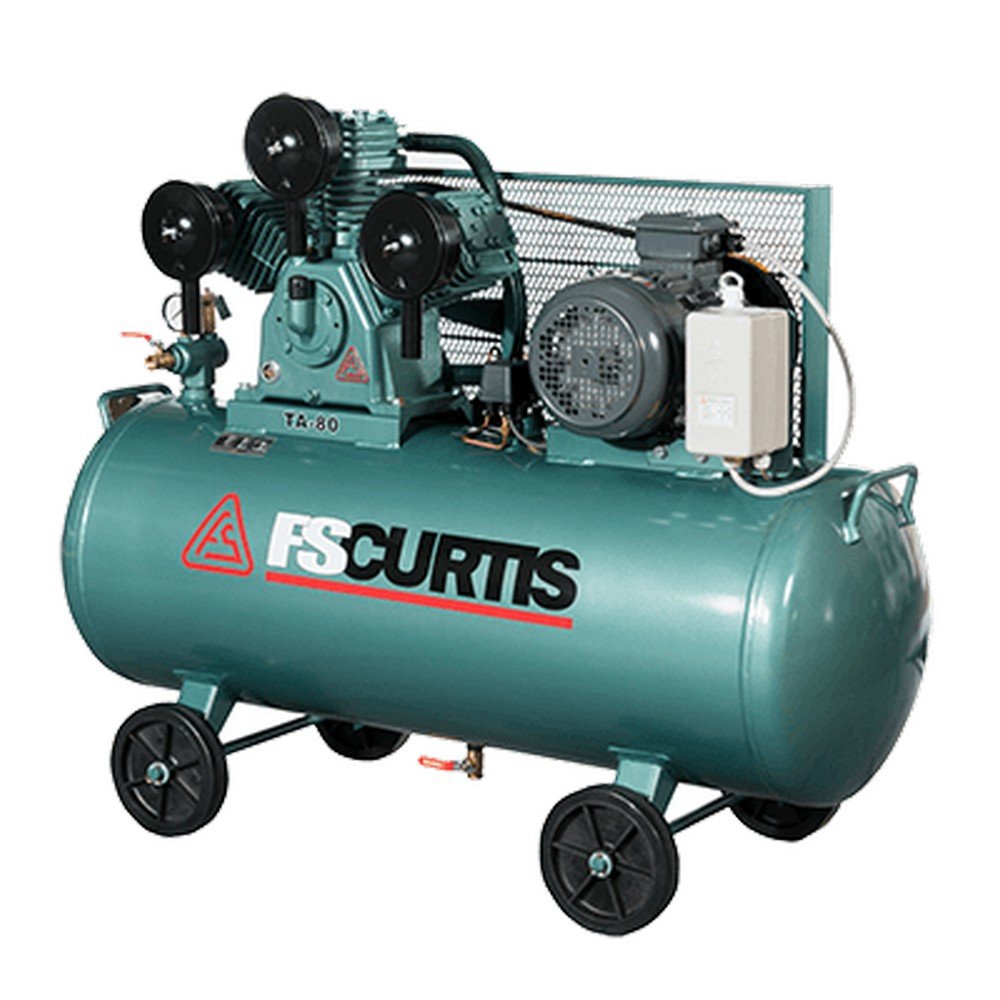

FS CURTIS reciprocating air compressor pump designed and manufactured to stringent ISO 9001 quality standards. Low speed, single stage, cast iron construction for outstanding performance and reliability.

Oversized air receiver tank is designed and manufactured in accordance with the American Society of Mechanical Engineers (ASME) Boiler and Pressure Vessel Code as required for the USA market.


A-SERIES SINGLE-STAGE AIR-COOLED AIR COMPRESSOR

MODEL MOTOR CYLINDER WORKING PRESSURE COMPRESSOR SPEED FREE AIR DELIVERY TANK CAPACITY TANK DIMENSIONS NET WEIGHT SOUND LEVEL
HP kW V No. Kg/cm²G r.p.m Lit/Min C.F.M Liter mm kg dB
TA-65 3 2.2 240 3 8 650 227.25 8.03 85 Ø 325×1090 85 72
TA-65H 3 2.2 240 3 8 650 227.25 8.03 105 Ø 350×1160 95 72
VA-80 3 2.2 415 2 8 770 346.50 12.24 105 Ø 350×1160 130 72
TA-80 5.5 4 415 3 8 875 575.25 20.32 155 Ø 390×1410 188 75
VA-100 7.5 5.5 415 2 8 955 783.75 27.68 245 Ø 485×1440 270 76
TA-100 10 7.5 415 3 8 888 1113.00 39.31 304 Ø 485×1760 340 82
TA-120 15 11 415 3 8 805 1628.25 57.51 304 Ø 485×1760 445 84
TA-125 20 15 415 3 8 913 1846.75 65.22 304 Ø 485×1760 540 85
D3 2.2 1.65 240 2 7 731 229.50 8.11 85 Ø 325×1090 80 72
